| FEATURE |
DESCRIPTION |
| Engine |

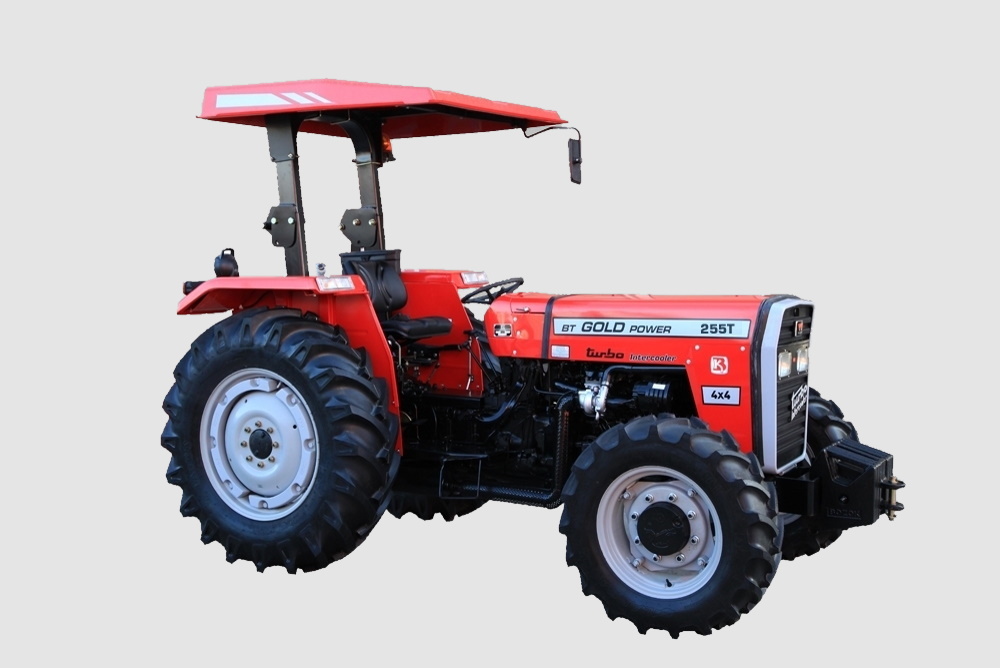

BT GOLD POWER 255T 4WD FIELD |
| Emission |
Stage III A |
| Brand Type |
BOZOK MOTOR / 1003D |
| Number of Cylinders/Aspiration |
3/Turbo Intercooler |
| Cylinder Displacement |
2990 cm |
| Air filter |
Dry Type |
| PERFORMANCE |
|
| Max Engine Power |
57 HP (42 kw) |
| Rated Engine Speed |
2200 d/d |
| Maximum Torque |
250 Nm / 1500 d/d |
| CLUTCH – PTO |
|
| Type |
Double Lining Dry Type |
| Pad Diameter |
254 mm – 304 mm (10″-12″) |
| CLUTCH – IPTO |
|
| Type |
Single Pad Dry Type |
| Pad Diameter |
305 mm (12″) |
| STEERING |
|
| Type |
Hydrostatic |
| Maximum Steering Angle |
55* |
| Turning Diameter Without Brake (mm) |
10500 |
| TRANSMISSION |
|
| Gearbox Type |
Standard |
| Gear Option |
8 Forward / 2 Reverse |
| Optional Gear Option |
Synchromesh 12 Forward, 4 Reverse |
| Motion Transmission |
Direct |
| Mechanical Double Wheel Lock |
○ |
| Differential Lock Control |
Mechanical |
| Max Speed |
29 Km/h / Optional |
| PTO SHAFT |
|
| Mechanical Clutch (PTO) |
● |
| 540 d/d PTO Transfer @ 1790 d/d |
● |
| Independent Hydraulic Clutch (IPTO) |
○/● |
| Wheel Movement |
○/● |
| PTO Power (ISO) |
52 Hp |
| BRAKES |
|
| Type |
Disc Brake |
| Pedals |
Classic and Suspension Pedal |
● =Standard
○ = Optional
— = Not applicable / Not available
